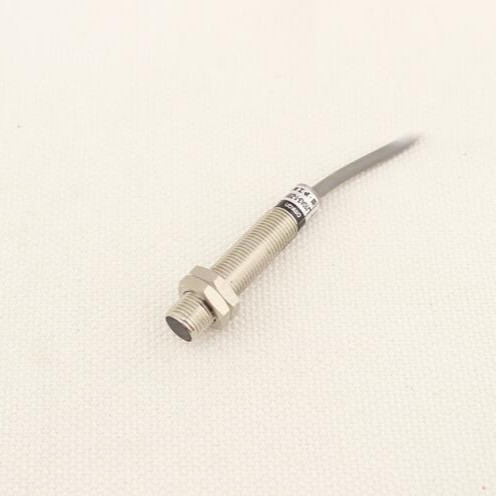

Lj10a3 Series Proximity Switch Sensor Shielded Mounting Inductive

LJ10A3 Series Proximity Switch Sensor

model LJ10A3-1-.

size Installation mode Shield type model DC type NPN NO LJ10A3-1-Z/BX NC LJ10A3-1-Z/AX NO+NC LJ10A3-1-Z/CX PNP NO LJ10A3-1-Z/BY NC LJ10A3-1-Z/AY NO+NC LJ10A3-1-Z/CY second line—an advisory post NO LJ10A3-1-Z/EX NC LJ10A3-1-Z/DX AC second line—an advisory post NO LJ10A3-1-J/EZ NC LJ10A3-1-J/DZ Three line NO+NC Detection distance 1mm + 10% Set the distance 0 - 1.2mm Lag distance The detection range below 10% Object detection Magnetic metal (non magnetic metal detection distance decreases) Standard test object Iron 8*8*1mm Frequency response DC:0.5kHz AC:25Hz supply voltage DC type: DC12 - 24V (6-36V) pulse (P-P) below 10%, AC: AC110 - 220V (36 - 250V) 50/60Hz Withstanding voltage AC1000V 50/60Hz 1min charging part and the shell. The influence of voltage Within the rated supply voltage range 15% rated supply voltage of + 10% detection distance Current consumption Type N.P: 13mA, D: 0.8mA, A: 1.7mA Output control Type N.P: 300mA, D: 200mA, A: 400mA Loop protection Type N.P.D: reverse connection protection, surge absorption, load short-circuit protection, type A: surge absorption The environment temperature and humidity When the movement, save the -30 +65 C (ice, frost), action, save time: 35 - 95%RH The influence of temperature The temperature range of -30 DEG C - +65, +23 C, + 15% detection distance The temperature range of -25 DEG C - +60, +23 C, + 10% detection distance Insulation resistance The above 50M (DC500 megameter) charging part and the shell. texture of material Shell: nickel plated brass surface detection: ABS Protection structure IP67 (IEC)
